Handheld Twisted Brass Wire Tube Brushes
You are here: Home » Products » Industrial Brushes » Tube Brushes » Handheld Twisted Brass Wire Tube Brushes

Handheld Twisted Brass Wire Tube Brushes

Brush Filament : brass wire
Stem Material : steel wire
Filament Type : straight

Brush Head : cutting tip
Brush End: steel loop
Brush Construction : single stem, single spiral

Model No.# : 21401/21402/21403/21404/21405/21406/21407/21408/21409
Application : deburring and polishing

Brand : Like
OEM or ODM welcomed
Origin : China


Twisted Brass Wire Tube Brushes For Industrial Use


These twisted brass tube brushes are used for cleaning the internal metal tubes, bores or cylinders by hand.  Steel loop on the end enables the hands to grip the brush comfortably.  Brush construction : single stem - single spiral.

High density of solid brass bristle are flexible and durable. Brush filament can be available in stainless steel, carbon steel, nylon or animal hair. Regular brush diameters varied from 3mm to 35mm.  Large size can be custom made if you have a specific requirement.

Packing :

50pcs/box, 100pcs/box

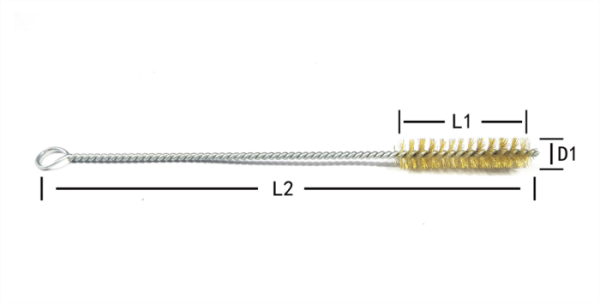

Brush Specification


    Part

No.#

 Filament

Material

Stem

Material

Brush

Diameter

D1

(mm)

Brush

Length

L1

 (mm)

Overall

Length

L2

(mm)

21401 brass wire
steel wire 3 25 140
21402 brass wire steel wire 4 40 150
21403 brass wire steel wire 5 40 150
21404 brass wire steel wire 6 40 200
21405 brass wire steel wire 10 50 200
21406 brass wire steel wire 12 60 250
21407 brass wire steel wire 16 60 250
21408 brass wire steel wire 25 80 250
21409 brass wire steel wire 35 80 300

* If the size you required is not listed here, please contact us for more diameters and materials.  This type of brush can be custom made according to your requirement.

1-2

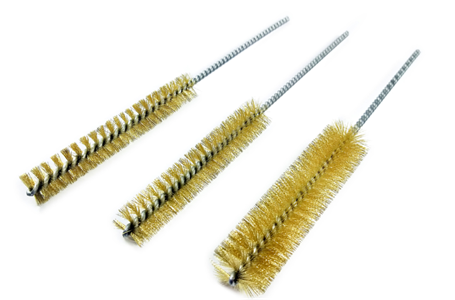

Twisted brass wire tube brushes for drills and CNC machine center can also be available. These brushes can be amounted on power tools for polishing and deburring the inner holes or cylinders.

You can check here to learn more information about these solid brass wire tube brushes.


4-4

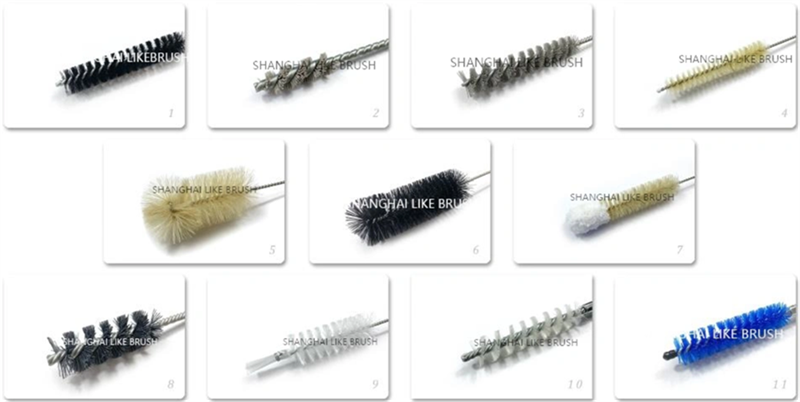

Available Brush Heads in LikeBrush


刷头 800


Available Brush Ends in LikeBrush


刷尾 800


High quality of brush and service is always our main goal. Low cost and satisfied delivery time is also our firm direction.
