Abrasive Disc Brush 150MM Diameter

Brush filament : abrasive wire
Core material : resin

Model : 92210/92211
Application : finishing and deburring

Brand : Like
OEM or ODM welcomed
Origin: China
Availability:


Abrasive Disc Brush 150MM Diameter


Abrasive disc brushes are used for general surface treatment, finishing, deburring and polishing.

High density abrasive wire are prefect for light and medium deburring and surface finishing application.  Brush filaments are available in silicon carbide wire, alumina oxide wire, ceramic wire or diamond wire with different abrasive grit and size. Resin core with central hole is durable and light weight.

Abrasive disc brushes 150mm diameter have two types : straight type and angled type.

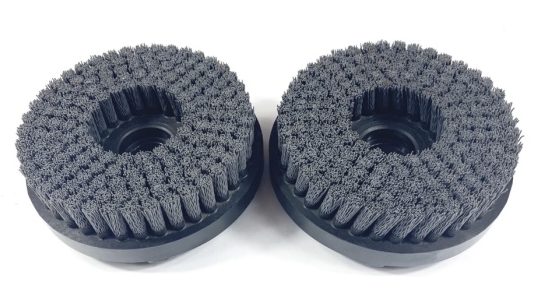

Brush Image

1-4-640-1

                  Straight Type                                              Angled Type


Brush Specification


Part

No.

Filament

Material

Base

Material

Brush

Filament

Brush Diameter

(mm)

Filament Height

(mm)

Brush Height

 (mm)

92210 silicon carbide resin Straight 150
25 35
92211 silicon carbide resin Right Angled 150 25 35

If the size you required is not listed here, please contact us for further information. Brush filament and brush size can be custom made according to your application.

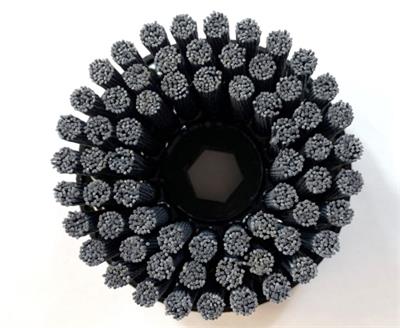

Abrasive Disc Brush 3" Diameter


1-3-500


If you would like to learn more information about 3" abrasive disc brushes, please check here.
