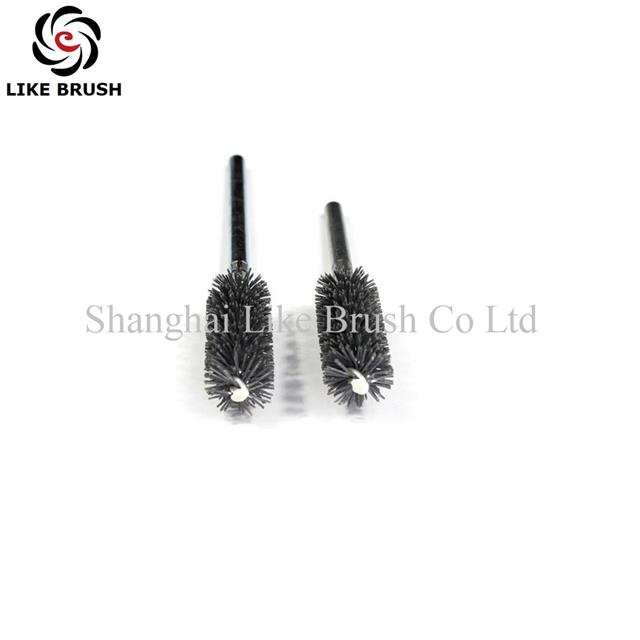

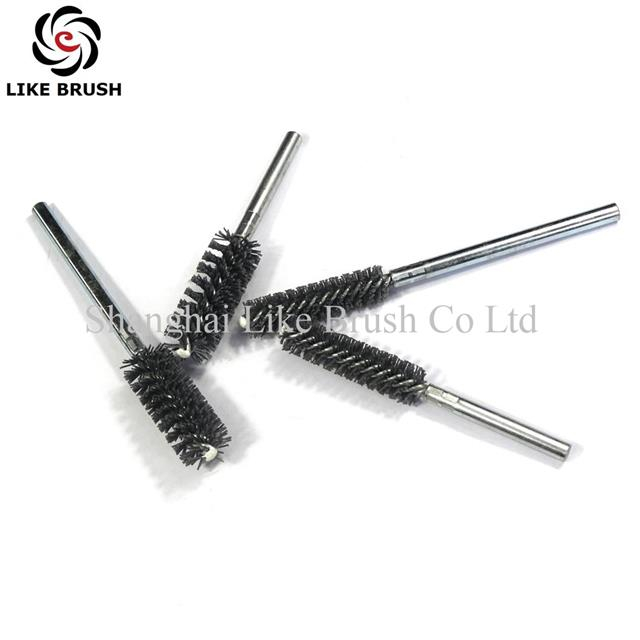

Abrasive Nylon Tube Brush with Round Shank
Abrasive nylon tube brushes with round shank are ideal for heavy duty polishing, deburring on small tubes, pipes, bores or cylinders. They have a good effective to remove the burrs, debris, rust on internal holes. Brush construction : double stem, double spiral. Steel round shank can be assembled on power tools or CNC center machines directly.
Brush filaments are available in silicon carbide wire, aluminum oxide wire. Regular abrasive grits varied from 60 to 600. Other grits and wire size can also be custom made according to your requirement.
Brush Specification
Part No # | Fill Material | Stem Material | Brush Diameter (mm) | Stem Diameter (mm) | Brush Length (mm) | Overall Length (mm) |
| 22101 | silicon carbide | steel | 8 | 6 | 50 | 150 |
| 22102 | silicon carbide | steel | 10 | 6 | 50 | 150 |
| 22103 | silicon carbide | steel | 12 | 6 | 50 | 150 |
| 22104 | silicon carbide | steel | 14 | 8 | 60 | 160 |
| 22105 | silicon carbide | steel | 16 | 8 | 60 | 160 |
| 22106 | silicon carbide | steel | 20 | 8 | 60 | 160 |
| 22107 | silicon carbide | steel | 25 | 10 | 60 | 160 |
| 22108 | silicon carbide | steel | 30 | 10 | 60 | 160 |
