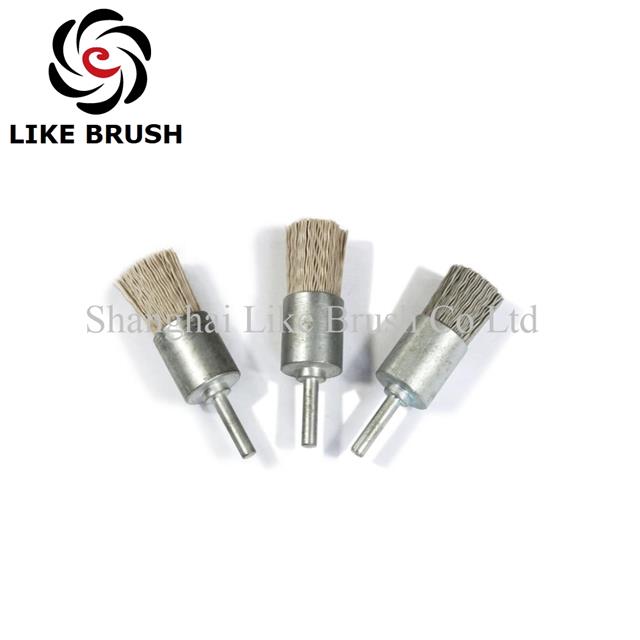

Abrasive Wire End Brushes
End brushes are perfect for clean the end face on machined parts, molding, shaft hole, cylindrical parts, steering gear and gear housing, pump casing, control piston and other surface cleaning treatment. Especially for cleaning automotive, hydraulic and foundry industries. They can be installed on portable power tools or machine centers.
Brush filament available in silicon carbide, aluminum oxide, ceramics and diamond. Standard filament grit in 80, 120, 180, 240, 320, 500, 1000. Brush length, brush diameter and materials can be custom made.
Brush Specification
| Part No. | Filament Material | Shank Material | Brush Diameter (mm) | Brush Length (mm) | Shank Diameter (mm) | Overall Length (mm) |
| 41011 | aluminum oxide | steel | 10 | 25 | 6 | 74 |
| 41012 | aluminum oxide | steel | 12 | 25 | 6 | 74 |
| 41013 | aluminum oxide | steel | 14 | 25 | 6 | 74 |
| 41014 | aluminum oxide | steel | 16 | 25 | 6 | 74 |
| 41015 | aluminum oxide | steel | 20 | 25 | 6 | 74 |
| 41016 | aluminum oxide | steel | 25 | 25 | 6 | 74 |
| 41017 | aluminum oxide | steel | 30 | 25 | 6 | 74 |
| 41018 | aluminum oxide | steel | 35 | 25 | 6 | 74 |
If the size you required is not listed here, please contact us for further information. Brush size and material can be custom made according to your requirement.
Abrasive Wire End Brushes
End brushes are perfect for clean the end face on machined parts, molding, shaft hole, cylindrical parts, steering gear and gear housing, pump casing, control piston and other surface cleaning treatment. Especially for cleaning automotive, hydraulic and foundry industries. They can be installed on portable power tools or machine centers.
Brush filament available in silicon carbide, aluminum oxide, ceramics and diamond. Standard filament grit in 80, 120, 180, 240, 320, 500, 1000. Brush length, brush diameter and materials can be custom made.
Brush Specification
| Part No. | Filament Material | Shank Material | Brush Diameter (mm) | Brush Length (mm) | Shank Diameter (mm) | Overall Length (mm) |
| 41011 | aluminum oxide | steel | 10 | 25 | 6 | 74 |
| 41012 | aluminum oxide | steel | 12 | 25 | 6 | 74 |
| 41013 | aluminum oxide | steel | 14 | 25 | 6 | 74 |
| 41014 | aluminum oxide | steel | 16 | 25 | 6 | 74 |
| 41015 | aluminum oxide | steel | 20 | 25 | 6 | 74 |
| 41016 | aluminum oxide | steel | 25 | 25 | 6 | 74 |
| 41017 | aluminum oxide | steel | 30 | 25 | 6 | 74 |
| 41018 | aluminum oxide | steel | 35 | 25 | 6 | 74 |
If the size you required is not listed here, please contact us for further information. Brush size and material can be custom made according to your requirement.
