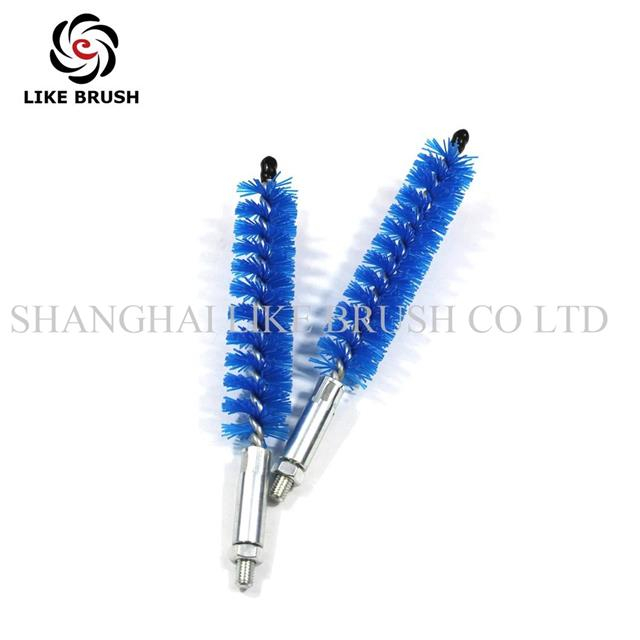

Condenser Tube And Heat Exchange Brushes

Bristle material : nylon bristle
Stem material : stainless steel wire
Thread size : M6

Brush head : protective cap or continuous tip
Brush construction : single stem - single spiral

Filament color : Blue
Net weight : 35.2 g

Model : 21101/ 21105/ 21109
Application : cleaning tubes

Brand : Like
OEM or ODM welcomed
Origin: China
Availability:


Condenser Tube And Heat Exchange Brushes


Condenser tube brushes are used for cleaning heat exchanges and condenser tubes.  The brushes are filled with nylon bristle and twisted with galvanized steel wire.  Brush end can be assembled with M6 thread. A plastic protective tip or continuous steel tip on the head can protect tube wall from sharp scratching.

Brush construction: single stem-single spiral. Brush filaments are available in hi-carbon steel wire, stainless steel wire, brass wire or nylon bristle. Brush length, overall length and brush material can be custom made according to your requirement.

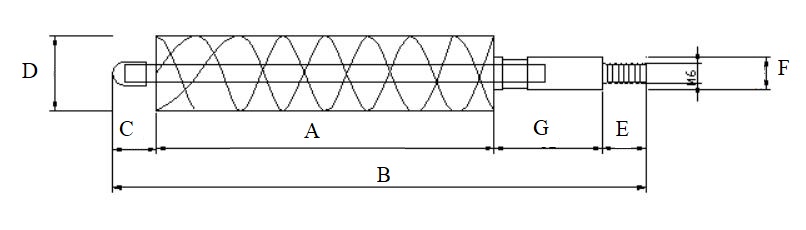

Brush Specification


P/N

Filament

Material

Stem

Material

Thread

Size

Brush

Diameter

(D)

Brush

Length

 (A)

Overall

Length

(B)

21101 nylon
stainless steel M6 3/4" (19.05mm) 100mm 160mm
21105 nylon stainless steel M6 7/8" (22.22mm) 100mm 160mm
21109 nylon stainless steel M6 1" (25.40mm) 100mm 160mm

* If the size you required is not listed here, please contact us for further information.
